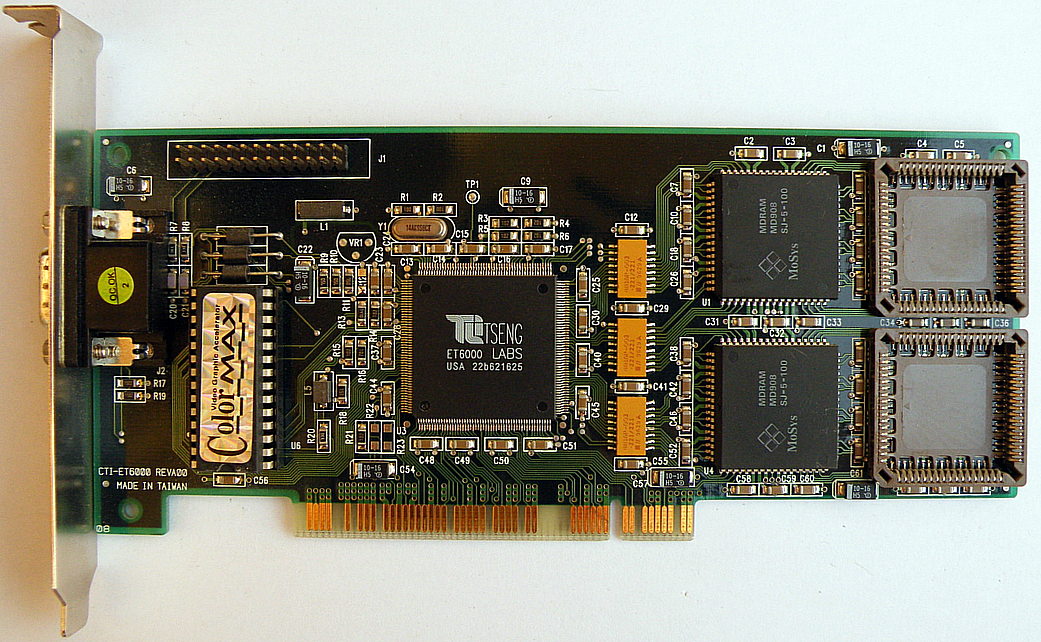

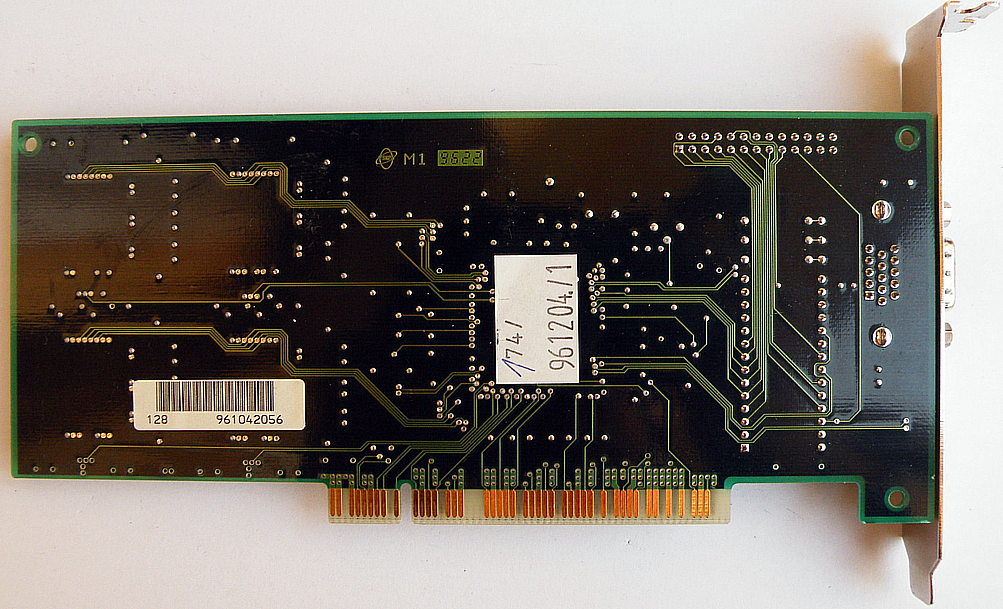

Tseng TSVGA ET6000
|
|
| Výrobce: Tseng | |
| Výrobce jádra: Tseng | |
| Název: TSVGA ET6000 | |
| Počátek výroby: 1995 | |
| Jádro: ET6000 zobrazit gpu s tímto jádrem | |
| Takt jádra: 81MHz | |
| Velikost grafické paměti: 2.3MB | |
| Frekvence grafické paměti: 81MHz | |
| Typ grafické paměti: MDRAM | |
| Rozhraní: PCI | |
| Porty: DSUB | |
| Chlazení: pasivní | |
| Délka karty: 18,5 cm | |
| Poznámky: The ET6000 is a single 208-pin SVGA graphics controller with an integrated 135MHz VGA-compatible 24-bit LUT-DAC and dual frequency clock generator. PCI 2.1 compatible I/O interface. VESA DDC1 and DDC2b monitor detection. Displays resolutions, colors up to 1280 x 1024, 16.8 million colors (True Color) at up to 75Hz vertical refresh. State-of-the-art 128-bit GUI accelerator. Full-functioned graphics acceleration engine supporting: Aligned and non-aligned operations, Transparent BLT, Rectangular BitBLT, Trapezoidal BitBLT, Vector line drawing, Hardware assisted clipping, etc. Accelerator architecture optimized for 8/15-15/24/32-bit packed pixel RGB modes. Accelerator queuing allows parallel processing by ET6OOO and host CPU. Support for DRAM, EDO DRAM, and MultibankTM DRAM (MDRAM). Multimedia Video Features: pixel interpolation engine, YUV 4:2:2 to RGB 8/15-16/24 converter, allows mixed numerous YUV and RGB windows (up to 4), Gamma boost/correction, etc | |
| Stav: OK | |
| HwBot: Netestována | GPU-Z: není |
| Majitel: Orange | |
